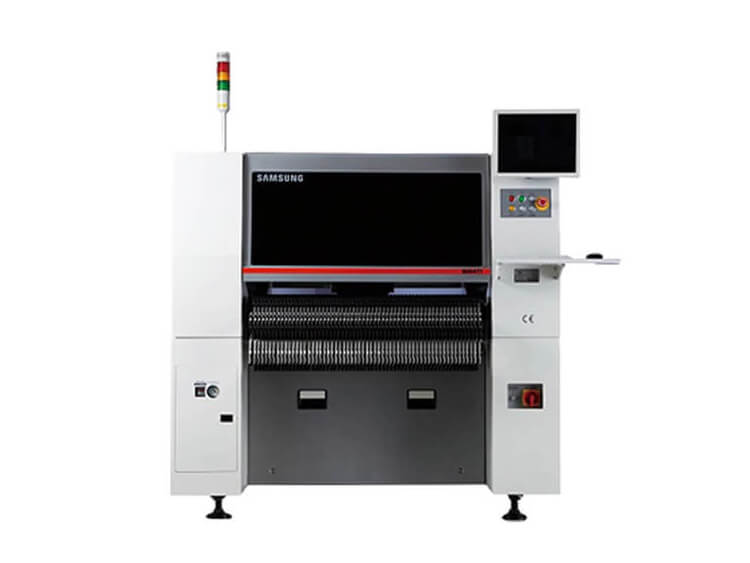

Samsung SM481 Chip Mounter

Samsung SM481 Chip Mounter

  • feeders 120
  • Chip theoretical speed 39,000CPH
  • 1650 X 1680 X 1530MM
  • weight 1655KG
  • Product description: Samsung SM481 Chip Mounter, feeders 120, Chip theoretical speed 39,000CPH, weight 1655KG, Dimensions:1650 X 1680 X 1530MM
  • INQUIRY

Samsung SM481 Chip Mounter

Description:

Samsung SM481 Chip Mounter
Chip theoretical speed 39,000CPH
Mounting range 0402Chip ~ □ 42mmIC
Placement accuracy plus or minus 0.03mm
PCB size 460 (L) * 400 (W)
Equipment size 1650 X 1680 X 1530MM
Power AC200 / 208/220/240/380
Equipment weight 1655KG

Samsung SM481 is based on the high-speed placement machine SM471 platform for the VISION system to

strengthen the same level of equipment in the fastest equipment,

It is equipped with a cantilever 10 shaft, the new flight camera and the application of the

best suction / placement action, so as to achieve the same level of products in the world as

fast as 39,000CPH. The other can correspond to a minimum of 0402 components to the

maximum □ 42mm IC, and increased practical productivity and mounting quality by applying

electric feeders, which can be shared with SM pneumatic feeders, thus maximizing

the customer's convenience of use.

Samsung SM481 Chip mounter parameters
Focus on the way flight vision + fixed vision (optional)
Number of axes 10 axes * 1 gantry
Mounting Speed 0603 39000 (Best Conditions)
Mounting accuracy chip ± 50um @ 3ó / chip
QFP ± 30um @ 3ó / chip

Component Range Flight Vision 0402- □ 16mmIC BGA CSP Ball Spacing 0.4
Standard Fixed Vision (FOV35) - □ 16mmIC (pitch 0.3mm)
- □ 32mm IC BGA CSP Ball Spacing 0.5
Standard Fixed Vision (FOV45) - □ 32mmIC (Pitch 0.4mm)
Focus on the way flight vision + fixed vision (optional)
Number of axes 10 axes * 1 gantry

Mounting Speed 0603 39000 (Best Conditions)
Mounting accuracy chip ± 50um @ 3ó / chip QFP ± 30um @ 3ó / chip
Component Range Flight Vision 0402- □ 16mmIC BGA CSP Ball Spacing 0.4
Standard Fixed Vision (FOV35) - □ 16mmIC (pitch 0.3mm)
- □ 32mm IC BGA CSP Ball Spacing 0.5
Standard Fixed Vision (FOV45) - □ 32mmIC (Pitch 0.4mm)
- □ 42mm BGA CSP ball pitch 1.0
Maximum height 10mm (option: 15mm)

PCB Size cm Min 5 x 4 Max 46 X 40 51 x 46 Options 61 X 51 Options 74 X 46 Options
PCB thickness 0.38-4.2mm
The number of feeders 120
Energy consumption Power consumption AC200 / 208/220/240/380 (50 / 60HZ)
Maximum 5KV Air consumption 0.5-0.7M ** (5.1-7.1kgf / c㎡
260Ne / min Weight (kg) 1655
Machine Size (M) 1.65 X 1.68 X 1.53
