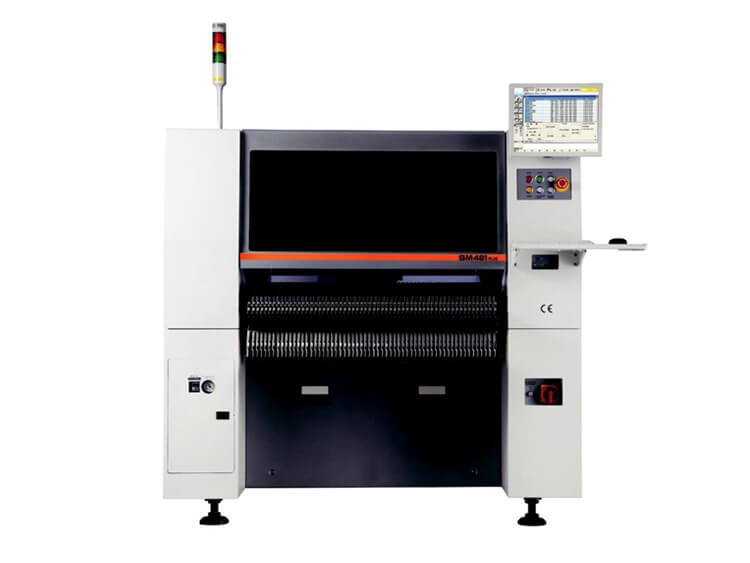

Hanwha SM481 PLUS Pick and Place Machine

Hanwha SM481 PLUS Pick and Place Machine

  • 10 Spindles × 1 Gantry
  • Component available: 0402 ~ 42mm(H 15mm)
  • MaxPCB: 460 × 400mm
  • Speed:40,000CPH
  • Product description: Hanwha SM481 PLUS Pick and Place Machine 10 Spindles × 1 Gantry, Component available: 0402 ~ 42mm(H 15mm), MaxPCB: 460 × 400mm, Speed:40,000CPH
  • INQUIRY

Hanwha SM481 PLUS Pick and Place Machine

Product Specifications:



ADVANCED HIGH SPEED FLEXIBLE MOUNTER

As a general component placer whose vision system is reinforced based on the platform of the SM471 high speed chip shooter and whose chip placement speed is the highest among the same class component placers, the SM481 realized achip placement speed of 40,000 CPH, the highest among the same class component placers, by applying a head with one gantry and ten spindles as well as new flying vision and by maximizing the pickup and placement motion.

In addition, it is applicable up to 0402 chips and 42mm ICs. It has improved actual productivity and placement quality by applying high speed and high precision electrically driven feeders. Furthermore, since it is designed to be compatible with SM series pneumatic feeders, it maximizes the customer’s operational convenience.

Specifications

SAMSUNG SMT pick and place machine

Model Name

SM471plus

SM481plus

SM482plus

Alignment

Flying Vision

Flying Vision+stage vision

Flying Vision+stage vision

Spindles

10 Spindles × 2 Gantries

10 Spindles × 1 Gantry

6 Spindles × 1 Gantry

Placement Speed

78,000CPH(Optimum)

40,000CPH(Optimum)

30,000CPH(Optimum)

Placement Accuracy

±40μm@μ±3σ

±40μm@μ±3σ

±40μm@μ±3σ

Applicable Parts

0402 ~ 14mm(H 12mm)

0402 ~ 42mm(H 15mm)

0402 ~ 55mm(H 15mm)

Applicable PCB(L × W)

Max. 510 × 460(Standard)

Max. 460 × 400(Standard)

Max. 460 × 400(Standard)

Max. 610 × 460(Option)

Max. 1500 × 460(Option)

Max. 1200 × 510(Option)

Dimension(L.D.H)

1650×1690×1458

1650×1680×1530

1650×1680×1458

Mass(Kg)

Approx. 1820

Approx. 1655

Approx. 1600
