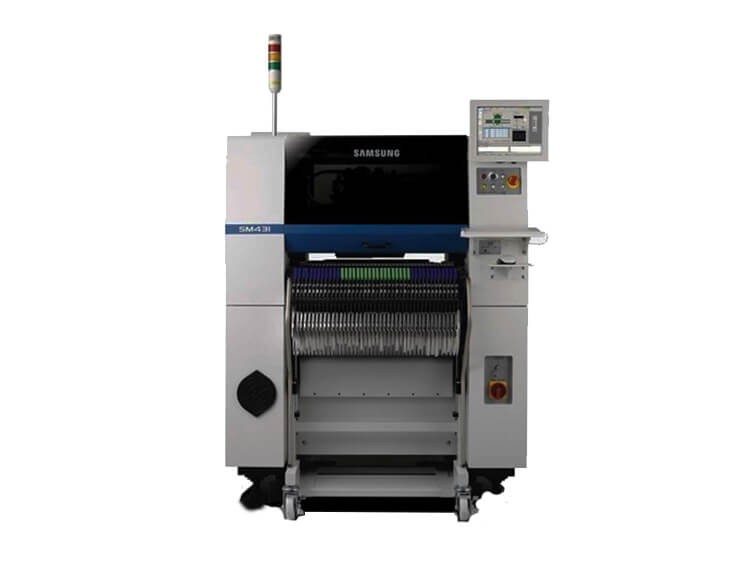

Samsung SM431 Pick and Place Machine
Description:
Samsung SM431 Pick and Place Machine
1. Mounting speed: chip 21k CPH (IPC9850) / QFP 5.5K CPH (IPC9850)
2. Corresponding components: Max 0402-55mm (component height H = 15mm)
3. Mounting accuracy: Cbip +/- 50um (Cpk 1.0) / QFP +/- 30UM (Cpk 1.0)
4. Corresponding PCB: L460 * W400 * 1Lane (standard) / Max L610 * W510 * 1 Lane
5. Centering mode: flight vision + fixed vision
Number of axes: 6 axes * 1 stand
7. Mounting speed: flight vision
Samsung SM431 pick and place machine is the high speed chip mounter
components identifation: New Flying Vision
SM431 components range: 0402 Max - 12mm IC chip,
Max PCB size: L460ⅹW460 PCB .
Max patch speed: Chip 42K CPH (IPC9850)
Component range: 0402 ~ 12mm (H = 7mm)
Placement Accuracy: ± 50㎛ @ μ + 3σ / chip
Max PCB size: Max. L460ⅹW460ⅹ1lane
Max. L460ⅹW250ⅹ2lane
Chip theory speed speed 55,000CPH
Mounting range 0402mm Chip to □ 12mm
Positioning accuracy of plus or minus 0.05mm
PCB size 460 x 460 (1PCB)
Samsung SMT SM431 efficient and wide range of support for all forms of production,
with its class in the world's fastest, universal type surface mount machine can mount a wide
range of components, the specific realization of "Limitless EXpansion" a number of
functions as Standard configuration, to ensure high-quality placement of a highly flexible feeding device.
Samsung SM431 parameters
1) Speed 55,000CPH (Best condition)
2) dual-arm Y-axis dual servo drive system
3) arms a total of 16 placement head
High-speed flight image recognition system
- Components to adapt to: 0402mm Chip to □ 12mm
- Mounting accuracy: ± 50μm @ 3σ
4) For new SM feeding system
- For non-stop feeder
- for the rail way feeder
-LED Displays feeder status
5) dual transmission system
- Dual transfer mode: 330 x 250 (2 PCBs)
- Single transfer mode: 460 x 460 (1PCB)
6) Can put 84 8mm feeders
7) LCD display with front and rear operation
8) automatic mouth change device
9) Windows XP operating system
10) Safety cover
11) Kit
Packaging & Delivery
Packaging Details
High - speed used surface chip mounter Samsung SM431 Pick and
Place SMT Machine for circuit board placement package
1) Standard box package for light and small item;
2) Strong wood package for heavy and large equipment.
Delivery Time
smt Machine Within 15-20 working days after get payment
