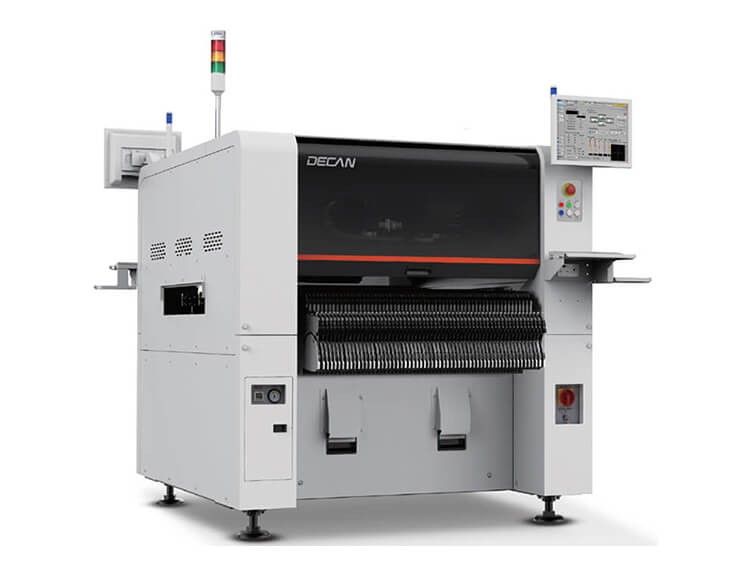

Hanwha DECAN L2 Pick and Place Machine

Hanwha DECAN L2 Pick and Place Machine

  • High Speed:56,000CPH
  • PCB Size : L510xW460mm
  • Feeder position:120ea
  • Weight: 1,800kg
  • Product description: Hanwha DECAN L2 Pick and Place Machine, High Speed:56,000CPH, PCB Size : L510xW460mm, Feeder position:120ea, component range:0402 ~ 21mm, H12mm, Weight: 1,800kg
  • INQUIRY

Hanwha DECAN L2 Pick and Place Machine

Product Specifications:



Hanwha Pick and place machine DECAN L2, Samsung Pick and place machine DECAN L2, Hanwha chip mounter DECAN L2, Hanwha chip mounter DECAN L2 has better area capacity than competitors' similar equipment, * optimized High-speed placement of small components;

High Performance
-2 Gantry, Flying VisionHead
-56,000 CPH (Optimum, FS06 Head)
High Reliability
-Suitable for Linear Motor, high precision and low noise
-Accuracy ± 40um @ Cpk≥1.0 (0402)
Flexible Production
-Modular Conveyor System
>> 6Spindle, 6 Flying Vision (FOV 24mm) Head
-Batch recognition with 6 cameras while picking up 6 components
-Processable components: 0402 ~ 21mm, H12mm
>> Low-noise, low-vibration high-speed placement with Linearmotor
-Suitable for Y-axis Linear Motor and realizes high noise reduction and vibration with high acceleration and deceleration using Twin servo Control
>> LEDLens protrusion recognition function (patent pending)
-Recognition of protrusions to distinguish LED lens types
-Added protrusions to distinguish lenses with similar shape but different thickness, which can recognize Lens (15 °, 30 °)
>> Identify the LED lighting source as the center and mount Lens
-Supports the function of recognizing the LED lighting source as the center and mounting Lens, which enhances the component processing ability
-Can handle PCB L1,200xW460mm

▶ Speed : 56,000 CPH (Optimum)
▶ Structure : 2 Gantry x 6 Spindles/Head
▶ Accuracy : ±40μm Cpk≥1.0 (0402 Chip)
±30μm Cpk≥1.0 (IC)
▶ Parts Size : 0402~□55mm, L75 (H25mm)
▶ PCB Size : L510xW460mm (Standard)
L1,200xW460mm (Option)
▶ Wide Part Handling Capability
▶ Various PCB Transfer Systems
▶ Verified Production History Management Solution
▶ High Speed Placement

▶Dimension(mm):1,430(L) x 1,740(D) x 1,485(H)

Weight: 1,800kg
