Siemens X series feeder 00141270 00141290

Siemens X series feeder 00141270 00141290

  • SMT Spare Parts
  • Siemens feeder
  • Siemens X series feeder 00141270 00141290
  • USAGE:Siemens pick and place machine
  • Product description: Siemens X series feeder 00141270 00141290
  • INQUIRY

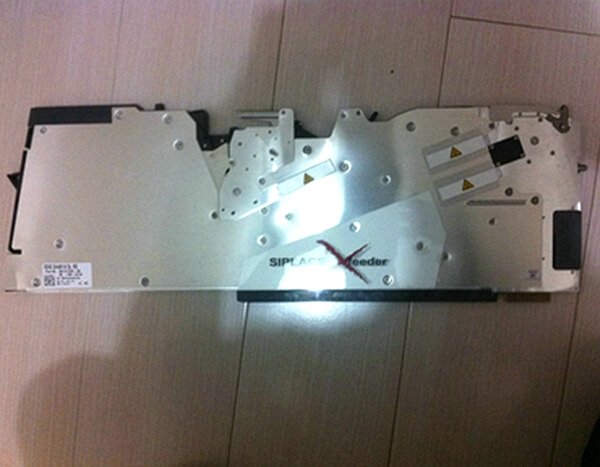

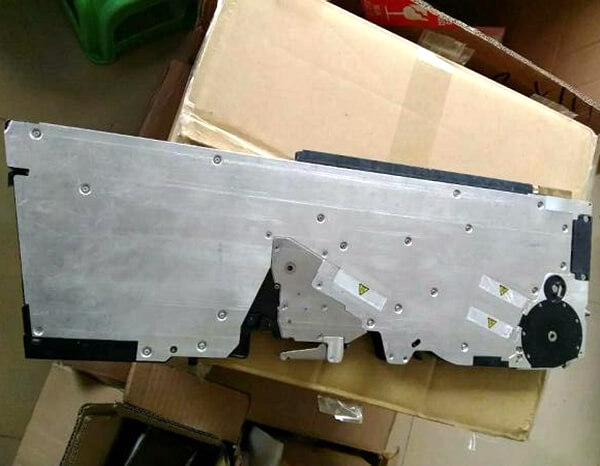

Siemens X series feeder 00141270 00141290

Product Specifications:



X Series 8MM 00141270 00141290
12MM 00141271 00141269
2x8mm 00141271
12mm 00141272
16mm 00141273
24MM 00141276
56mm 00141277 72mm

Siemens 00141098 3*8FEEDER
Siemens 00141098 3*8FEEDER
Siemens 00141099 3*8FEEDER
Siemens 00141099 3*8FEEDER
Siemens 00141097 SL
Siemens 00141092 12/16 FEEDER
Siemens 00141092 12/16 FEEDER
Siemens 00141093 24/32 FEEDER
Siemens 00141094 44MM FEEDER
Siemens 00141094 44MM FEEDER

00345355 3*8
00310418 2*8
00322119 12-88
00327025 2*8mm
00308621 2*8
00351602 3*8
00351603 3*8
00322513 Drive-Unit 12/16
00350833 12/16
00309036 2*8
00342023 3*8
00322753 12/16
00308626 2*8
00325454 12/16
00345356 3*8
00322445 12/16
00322449 12/16
00328503 12/16
00328504 24/32
00326528 2*8
00344035 3*8
00344036 3*8

8MM with sensor 00141290
8MM without sensor 00141270
12MM  00141271
16MM  00141272
24MM  00141273
32MM  00141274
44MM  00141275
56MM  00141276
72MM  00141277

Advantages of Siemens Feeder Systems

  • Increased productivity
    through optimized travel times based on master value coupling

  • Extensive diagnostic capabilities
    among all components

  • Rationalized production procedures
    resulting from travel and tool data management

Sample Solution for Feeder Systens

Siemens allows more flexible production procedures while reducing auxiliary production times. This is only possible with highly dynamic movement control, whose smooth and material-friendly movements also allow longer maintenance intervals.

A feeder system solution from Siemens provides

  • Cost-optimized solution
    through optimally adjusting power and the number of axes

  • End-to-end communication
    between all components with Totally Integrated Automation

  • Open application solution
    through ready-to-use technological functions

Siemens offers smooth amalgamation of run-time (logic), motion, and technology functions. Feeder functions are ready to use in SIMOTION and operating screens are ready to use in ProTool/Pro or WinCC flexible, allowing engineering costs to be kept at a minimum.

This offers

  • Speed-optimized movements in accordance with standardized laws of motion (VDI 2143)

  • Processing via higher order polynomials and therefore improved shock and jolt behavior

  • Master value link, calculation of a complex path motion

  • Operating modes: Automatic, single step, continuous operation

  • HMI for parameterizing the path via the "Teach-in function"

  • User interface for integrating customized transformations

  • Cartesian 2 or 3 axis portal

  • Safety integrated, e.g. safely limited speed (SLS) during machine setup

Feeder performance will degrade without proper maintenance. Regular cleaning, lubrication,and calibration are essential. Feeder neglect will lead to:
1. Mispicking of parts
2. Misplacement of parts
3. Flipped parts
Issues related to improper nozzle/feeder maintenance or use of poor quality nozzles. Here are some of the most common problems:
1. Poor pickup location on part. It will cause a loss of vacuum and result in parts shifting on the nozzle during transport.
2. Short/worn nozzles result in poor pickup and can cause the part not to be imbedded into the paste. When the part is not placed into the paste correctly there is not enough surface tension to hold the part while the PCB is moving. Parts will shift.

FLASON SMT deals in the following products:

1. SMT equipment and accessories: nozzles, feeder, feeder parts, cutter, filter, guide, tape, mortor, belt, cylinder, smt grease/lubricant, sensor etc.
2. Nozzles & feeders for fuji, for Juki, for yamaha, for samsung, for siemens, CM602, CM402...have large stock.
3. Nozzle cleaning machine, solder paste mixer, SMD component counter
Our advantage
A. Own a team with engineers who have more than 10 years experience in SMT service.
B. Various brands available
C. Offer customized service
D. Large stock- more than 10000 models of smt parts

Keywords:

Siemens Feeder, Siemens 12MM Feeder, Siemens 16MM Feeder, chip mounter Feeder, FUJI 32MM Feeder, Siemens 8MM Feeder, Siemens 44MM Feeder, Siemens 52MM Feeder, Siemens Stick Feeder, Siemens Siplace Feeder, Siemens DX Feeder, Siemens SX Feeder.

Flason Electronic Co.,ltd provide a full SMT Spare parts solutions, including SMT Feeder, SMT Nozzle, SMT Control Card, SMT Motor, SMT Laser | Sensor, SMT Feeder Storage Cart, SMT Servo driver, SMT Solenoid Valve, SMT Filter, SMT Feeder parts, Chip mounter Parts, SMT Equipment etc. If there's any kind SMT Spare parts you may need, please contact us for more information: wechat whatsapp:008613691605420, Skype: flasonsmt, Email: sales@flason-smt.com.
