Home > Panasonic Nozzle

  • Panasonic MSR HT M Nozzles

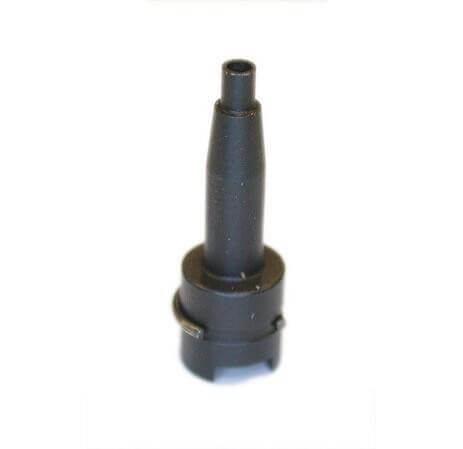

Panasonic MSR HT M Nozzles

Panasonic MSR HT M Nozzles

  • SMT Spare Parts
  • Panasonic Nozzle
  • Panasonic MSR HT M Nozzles
  • USAGE:Panasonic pick and place machine
  • Product description: Panasonic MSR HT M Nozzles
  • INQUIRY

Panasonic MSR HT M Nozzles

Product Specifications:



MSR SMT NOZZLE
Part Number       Description
10468S0002        MSR - SMT NOZZLE - VVS (0.84 X 0.60)
10468S0003        - NZ. - VS (1.0 X 0.64)
10468S0004        -NZ. - S (1.6 X 1.06)
1046710134        -NZ. - M (1.60mm)
10467S0001        -NZ. - L (3.00mm)
10467S0002        -NZ. - LL (5.50mm)
10467S0003        -NZ. - LLL (8.00mm)
10467101181 2        HOLDER/SLIDE SHAFT

MV2F MV2C MV2 SMT NOZZLE
Part Number         Description
102247818103        MV2F PANASONIC SMT NOZZLE - SS (1.4X0.8) (DIAMOND COATING)
102247848603        MV2F - MA (1.8X1.2) (DIAMOND COATING)
1022478181          MV2C PANASONIC SMT NOZZLE - SS 'X' (1.4X0.8) (DIAMOND COATING)
1022478186          MV2C - RSS (1.2X0.7) (DIAMOND COATING)
1042875151          MV2C - SA (1.0X0.8) (DIAMOND COATING)
0175015K05M CY      SMT NOZZLE MV2 # 1 NZ. - Ø 0.5 (TAPERED TIP)
0175015K09          MV2 # 1NZ. - Ø 0.8 (TAPERED TIP)
10201530000         MV2 # 2NZ. - Ø 1.2
1020179561          MV2 # 2NZ. - Ø 1.6
1020106016          MV2 # 3 (L)NZ. - Ø 2.0
1020179490          MV2 # 3 (L)NZ. - Ø 2.5
1020179500          MV2 # 3 (L)NZ. - Ø 3.0
1020175011          MV2 # 4 (LL)NZ. - Ø 4.0
102017501101        MV2 # 4 (LL)NZ. - Ø 5.5
1020247902201       MV2 # 5 (LLL)NZ. - Ø 8.0

MV MQ MK SMT NOZZLE
Part Number        Description
1020179380 K       SMT NOZZLE MV # 1NZ. A - Ø 0.8 (WITH REFLECTOR)
1020179381         MV # 2N . B - Ø 1.2
1020179381 K       MV # 2NZ. B - Ø 1.2 (WITH REFLECTOR)
1020179561         MV # 2NZ. B - Ø 1.6
1020106016         MV # 3NZ. C - Ø 2.0
1020179490         MV # 3NZ. C - Ø 2.5
1020179500         MV # 3NZ. C - Ø 3.0
1020153051         MV # 3NZ. C - Ø 3.5
1020179065         MV # 4NZ. D - Ø 4.0
1020153061         MV # 4NZ. D - Ø 5.5
1020106023 04      MV # 5NZ. E - Ø 8.0
X70513010          MQ - Ø5.0
X70513011          MQ NZ. - Ø7.0
X70513012          MQ NZ. - 5 HOLES (SMALL)
X70513013          MQ NZ. - 5 HOLES (BIG)
6188021            MK NZ. - 1 HOLE
6188593            MK NZ. - 3 HOLE
6189336            MK NZ. - L


MPA MPAG3 MPAV SMT NOZZLE
Part Number        Description
1015679101        MPA SMT NOZZLE CENTRALING CHUCK - S (3 HOLES)
1015679201        MPA SMT NOZZLE CENTRALING CHUCK - M (SINGLE HOLE)
1015689214        MPA NZ. CENTRALING CHUCK - L
1018520412        MPA NZ. - S (SPECIFY:4X4/5X5/6X6)
1015660021        MPA NZ. - M (10X10)
1018520310        MPA NZ. - L (12x12)
104590801403      MPAG3 NZ. (1.7 X 1.2)
104700867002      MPAG3 NZ. (1.7 X 1.5)
109700860-02      MPAG3 NZ. M (16 X 2.1
104590862403      MPAG3 NZ. (4.0 X 3.4)
104593840         MPAG3 NZ. (2.0 X 1.0)
1047008600AD      MPAG3 NZ. (1.0 X 0.8) SA
04590801209       MPAG3 FLANGE/HOUSING
1040308610        MPAV NZ. - SS (1.5 X 1.0)
1040308620        MPAV NZ. - S (1.8 X 1.2)
1040308630        MPAV NZ. - M (4.0 X 3.4)
1040308670        MPAV NZ. - S (CONNECTOR)
1040308680        MPAV NZ. - M (CONNECTOR)
1040318750        MPAV NZ. - QFP-PAD NZ.
1040338340        MPAV NZ. - M (PERMEATION)

MSH II MCF MMC MSH III SMT NOZZLE
Part Number        Description
101878181001       MSH 2 NZ. - S (DIAMOND COATING) (1.5X1.0)
102378926502       NZ. - S (DIAMOND COATING) (1.8X1.2)
101878181002C      NZ. - S (CARBIDE TIP) (1.5X1.0)
1021206250AC       NZ. - M
1021206240AD       NZ. - L (ANGLE DISK)
1023810350         NZ. - L (FLAT DISK)
1020806005 01      HOOK
10443101004        MSH III- S (1.5 X 1.0)
10443101004M CY    - S (1.8 X 1.2)
104431020002       - M (LARGE DISK)
1083408601         - S Ø5.5 / Ø3.9 (1.0 X 0.8)
1083498002         - M Ø3.0 / Ø2.4
1083498031         - L Ø5.5 / Ø4.5
108349CY76 CY      - LLL Ø7.0 / Ø6.0
X01B40035          1.0 X 0.8

Other products

Our company supply all kinds of SMT machines and related  products:

1.SMT equipment and accessories, nozzles, feeder, feeder parts, cutter, filter, guide, tape, mortor, belt, cylinder, smt grease/lubricant, sensor etc.

2. Nozzles & feeders&their parts for fuji, for Juki, for Yamaha, for Samsung, for Siemens, for Panasonic,for Sony....etc,all of them have large stock.

3. We sell and recycle used SMT machine



FLASON SMT deals in the following products:

1. SMT equipment and accessories: nozzles, feeder, feeder parts, cutter, filter, guide, tape, mortor, belt, cylinder, smt grease/lubricant, sensor etc.
2. Nozzles & feeders for fuji, for Juki, for yamaha, for samsung, for siemens, CM602, CM402...have large stock.
3. Nozzle cleaning machine, solder paste mixer, SMD component counter
Our advantage
A. Own a team with engineers who have more than 10 years experience in SMT service.
B. Various brands available
C. Offer customized service
D. Large stock- more than 10000 models of smt parts

Keywords:

Samsung Nozzle, JUKI Nozzle, Siemens Siplace Nozzle, Yamaha Nozzle, Panasonic Nozzle, FUJI Nozzle, I-Pulse Nozzle, Universal Nozzle, ASM Nozzle,Hanwha Nozzle, Panasert Nozzle, Panasonic MSF AM100 BM123 MSR Nozzle, Panasonic NPM Nozzle, Panasonic CM202 CM402 CM602 Nozzle.

Flason Electronic Co.,ltd provide a full SMT Spare parts solutions, including SMT Feeder, SMT Nozzle, SMT Control Card, SMT Motor, SMT Laser | Sensor, SMT Feeder Storage Cart, SMT Servo driver, SMT Solenoid Valve, SMT Filter, SMT Feeder parts, Chip mounter Parts, SMT Equipment etc. If there's any kind SMT Spare parts you may need, please contact us for more information: wechat whatsapp:008613691605420, Skype: flasonsmt, Email: sales@flason-smt.com.
