  • KOH YOUNG KY8030-2 3D SPI

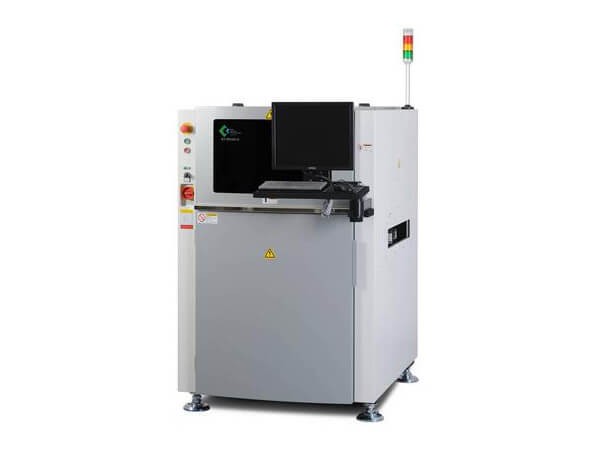

KOH YOUNG KY8030-2 3D SPI

KOH YOUNG KY8030-2 3D SPI

  • inspection range: 01005
  • PCB size:490x510mm
  • Dimension:1000x1280x1727mm
  • weight:600kg
  • Product description: KOH YOUNG KY8030-2 3D SPI, inspection range: 01005, PCB size:490x510mm, Dimension:1000x1280x1727mm, weight:600kg
  • INQUIRY

KOH YOUNG KY8030-2 3D SPI

Specifications:

KOH YOUNG KY8030-2 3D SPI

The World's Best-selling Full 3D Solder Paste Inspection
· Best-in-class measurement accuracy and inspection reliability
- Solves shadow problems by utilizing 2-way projection
- Provides accurate inspection data with real-time PCB warp compensation
- Provides user-friendly software interface
· Full 3D data-based process optimization solution: Realization of industry 4.0 / smart factory
- Realizes real-time process optimization through powerful SPC analytics
- Provides a powerful printing process optimization tool
· Good value model for a variety of production environment

Key Features:

  • Solution to shadow problem using patented dual projection Moiré technology
  • Industry best inspection speed with guaranteed measurement accuracy
  • Easy UI & SPC Plus included to help printing process optimization

Inspection Items: Volume, Area, Height, Offset, Bridging, Shape Deformity, Coplanarity

Inspection Speed:

Resolution

15um

20um

25um

Inspection time(per FOV)

0.47sec

0.47sec

0.47sec

Max. PCB size:

Machine Size

M

L

XL

Max

330 x 250 mm

510 x 510 mm

810 x 610 mm

FOV Size

30 x 30mm

3D Inspection Speed

22.5-56.1cm2/Sec

Distance between deposit

100 Micrometer

Inspection Size

10 x 10mm

Inspection Height

400 Micrometer

PCB Size Handling

330 X330mm To 850 x 690mm

Air And Power Supplies

Single Phase 200-240vac,50-60hz,5kgf/ Cm2
