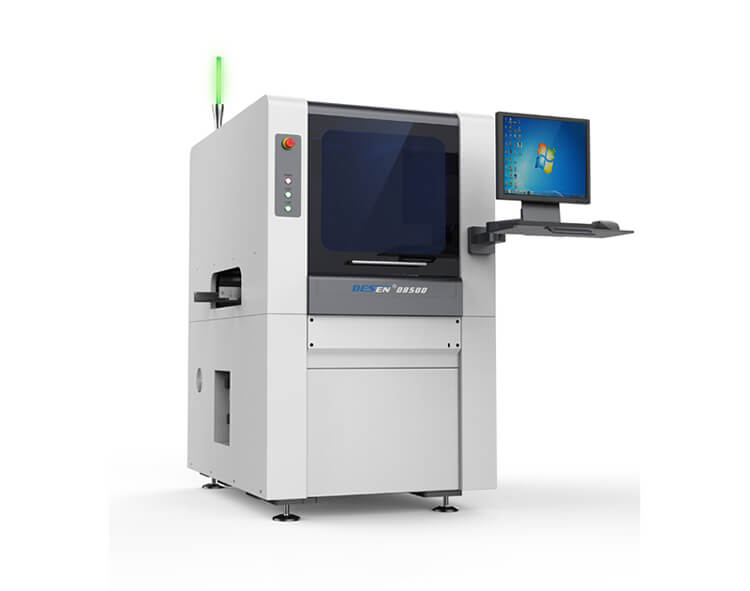

Full Automatic Glue Dispensing Machine

Production range:450x450mm
PCB width:400mm
Weight:1000KG
Dimension:921x1230x1499mm
Product description: Full Automatic Glue Dispensing Machine, Glue Dispenser, Production range:450x450mm, PCB width:400mm, Weight:1000KG, Dimension:921x1230x1499mm
INQUIRY

Specifications:

• High controllable dispensing commands such as point, line, multi-section line, arc, circle,rectangle filling, circular filling and 3D dynamic trajectory;
• Simplified steps of production calibration;
• Perfect fluid weight control technology;
• Practical programming interface;
• It is easy to realize the programming and process control of dispensing which included Encapsulation, under fill, dam and fill, SMA and conductive silver epoxy, etc.
• English windows and menu.

XY Motion Range	480X680mm
Production range	450X450mm
XY Acceleration	3g
XY Velocity	2000mm/s
XY Repeatability precision	+/-0.015mm
XY resolution	0.001mm
Z motion route	60mm
Z Acceleration	0.75g
Z Velocity	500mm/s
Z repeatability	+/-0.01mm
Scale resolution	0.1mg
Product heating mode	vacuum and impingement was optional
Heating control accuracy	within 0.5 degree
Conveyer station	1 -3 stations optional
Conveyer width	30-400mm
Conveyer mode	stepping motor
Conveyer belt	synchronous belt
Cleaning method	Vacuum/paper tape cleaning optional
Camera light	Direct/diffuse/slant multiple selection

Keywords:

SMT Stencil printer, SMT solder paste printer, SMT printing machine, SMT PCB printer, 600mm Solder paste printer, 1200mm solder paste printer, Solder paste printer, GKG stencil printer, GKG printer.

Flason Electronic Co.,ltd provide a full SMT assembly line solutions, including SMT Reflow Oven, Wave Soldering Machine, Pick and Place Machine, SMT Stencil Printer, SMT AOI SPI Machine, SMT Reflow Oven, SMT Peripheral Equipment, SMT Assembly line, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8613691605420, Skype: flasonsmt, Email: tommy@flason-smt.com

FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
